Article number: SCB1DL

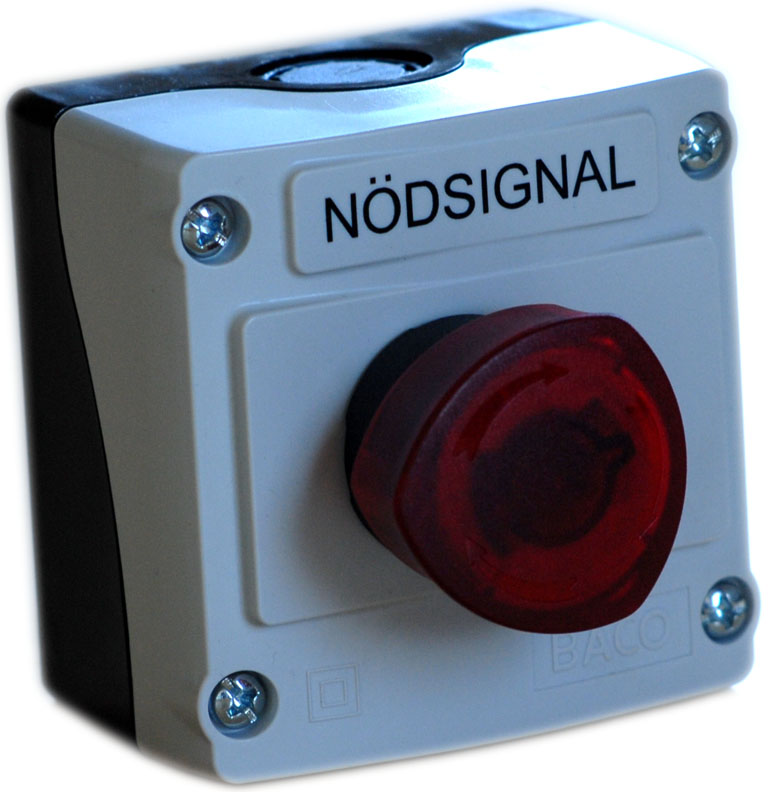

SCB 1 DL is an illuminated mushroom pushbutton, intended to operate our instängningslarm, SCA 1 AL.
SCB 1 DL consists of a pushbutton, a normally open contact and an LED mounted in a plastic housing.
Also available as a general emergency stop button with normally closed contact.
• Illuminated push button.
• Push button locks in the depressed position.
• Resets with a clockwise twist.
• Size: 74 x 74 x 74 mm.
• Make contact.
• 12V LED, 9mA.
• Brightness unspecified, approx. 6cd.
• Grey cover, red button.
• IP65.
